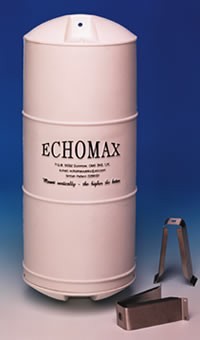

Em230Br Passive Radar Reflector 24"X 9.65"

Description

ECHOMAX EM230BR PASSIVE RADAR REFLECTOR SOLAS/MED MAST BRACKETS SOLD SEPARATELY

The EM230BR passive radar reflectors is considered a rigid radar reflector due to the robust Polyethylene case and is suitable for deck/mast mounting or halyard suspension and are available from stock in white.

All Echomax passive reflectors are made with the patented stacked symmetrical array. The patented stack design offers the most reflected radar surface area no matter the pitch or roll of the vessel, always offering a right angle corner return to the ship’s radar. The arrays are manufactured under tight tolerance controls of +/- 10 degrees for maximum return.

The Echomax outperforms ALL other radar reflectors in real world conditions.  Every model and size is certified to perform to spec and outperform the competition.

The Echomax EM230BR is used by the UK and the US Navy.

NSN#: 5840-99-742-6193

Ships Wheel certified

The EM230BR meets all standards for ISO, RORC, ORC, ISAF and WCC

Suggested for: Vessels between 9-15m (29.5-49.2ft), life boats and rescue crafts

Maximum Response: 24M2

Dimensions:

• Height: 605mm (23.8in)
• Width: 245mm (9.6in)
• Weight: 2.3kgs (5lbs)
• Fixing Centers: 545mm (21.5in)
• Stainless eyelets: 2 eyelets — 8mm (.3in)

Mast brackets sold separately (part number EM230MBM)

Deck mounted brackets sold separately (part number EM230BRDMBM)
